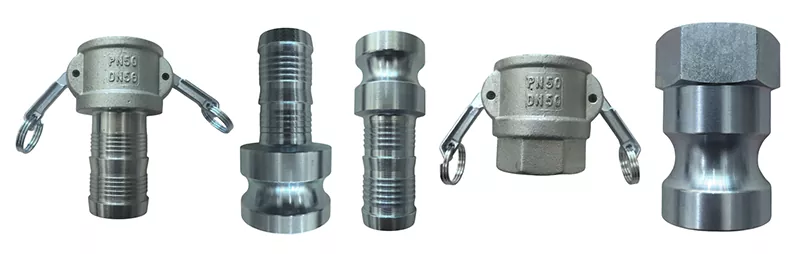

Mortar Couplings

As the professional manufacturer, we would like to provide you Mortar Couplings. This rugged piece is made of malleable cast iron/steel and is suitable for mortar and concrete spraying equipment. Other swivel types are available upon request! Note: Only parts of the same model, size and system are interchangeable!

Stuur onderzoek

Productomschrijving

made of Malleable Iron/ Steel,

Attention: Only same type-size and same system interchangeable!

For mortar and concrete spraying- devices

Other swivelling types on request!

Swivelling parts, lead in teflon slide, extremely robust and tight

zinc-plated and yellow/blue，passivated (free of chrome VI)

Remaks:

1.Material: Steel

2.Thread: BSP;

3.Gasket: NBR/EPDM;

4.Casting techhique:Precision casting/forging

Mortar Couplings(PN 50 bar)

✱ Only same type-size and same system interchangeable!

✱ zinc-plated and yellow/blue，passivated (free of chrome VI)

✱ For mortar and concrete spraying- devices

✱ Other swivelling types on request!

✱ Swivelling parts, lead in teflon slide, extremely robust and tight

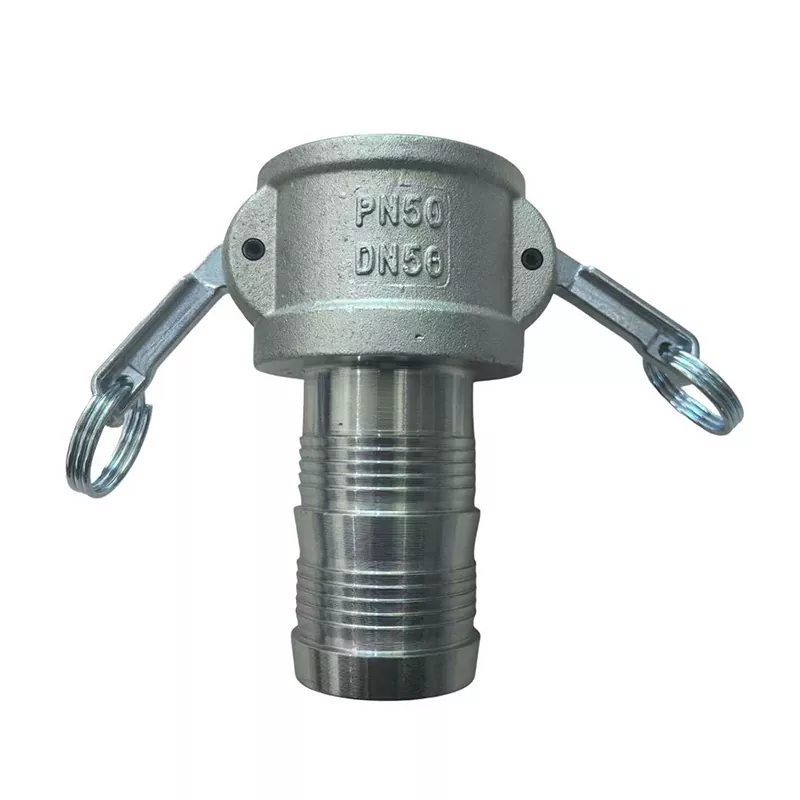

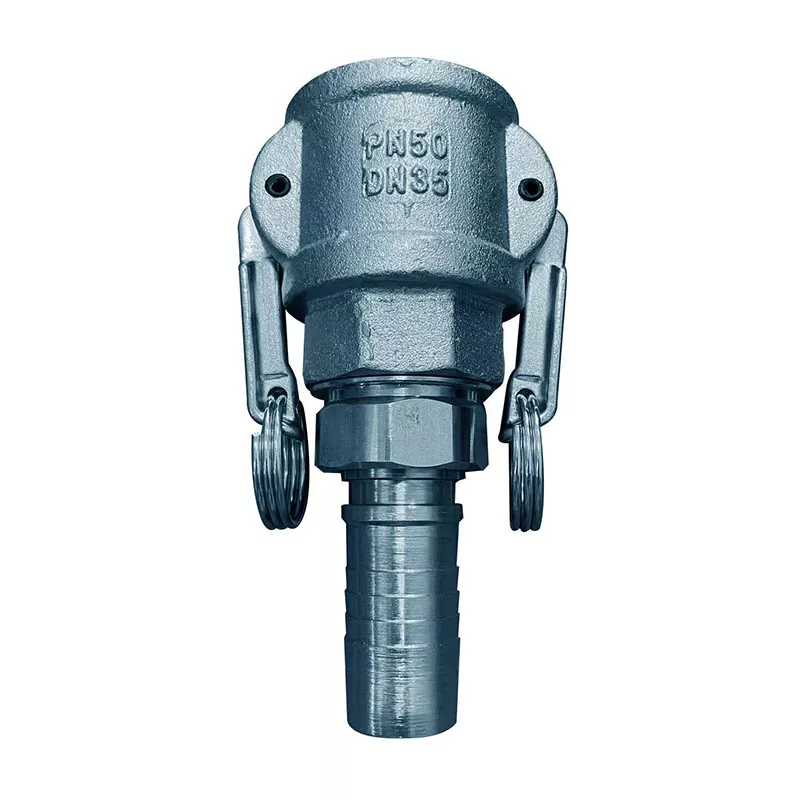

Couplings with hose stem (full passage)

SIZE	DN	PART #	ID	L	L1	A	B	Weight(kg)
1"	25	MCC2-100-SP	41.8	120.5	67	28.9	69	0.6
1-1/4"	35	MCC2-125-SP	51.1	126	70.5	37.9	77	0.74
2"	50	MCC2-200-SP	64.2	141	85.5	54	90	1.2

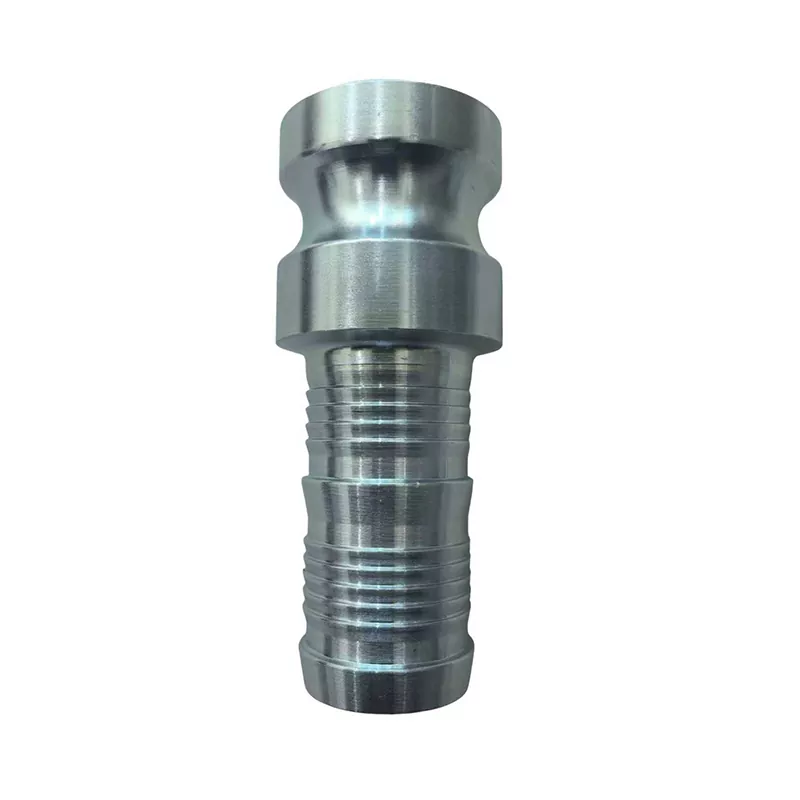

Plugs with hose stem (full passage)

SIZE	DN	PART #	OD	L	L1	A	Weight(kg)
1"	25	MCE2-100-SP	40.7	119.3	65.8	28.9	0.392
1-1/4"	35	MCE2-125-SP	49.7	121.2	72.6	37.9	0.538
2"	50	MCE2-200-SP	62.9	136.4	74.9	54	0.97

Plugs with hose stem (reduced passage)

SIZE	DN	PART #	OD	L	L1	Weight(kg)
1"x3/4"	25x20	MCE2-1007-SP	40.7	119.3	65.8	0.47
1-1/4"x1"	35x25	MCE2-1210-SP	49.7	121.2	65.8	0.57
2"x1-1/4"	50x35	MCE2-2012-SP	62.9	121.2	72.5	0.81
